High Oil Yield Seed Oil Processing Equipment Oil Cold Press Machine

Basic Info.

Model NO.	GG-ZY280
Application	Beans, Seeds
Voltage	380V
Appearance	Vertical
Press Materials	Seeds
Press Series	Second
Condition	New
Customized	Customized
Capacity	50-150 Kg/H
Transport Package	Wooden Packing as Export Standard
Specification	900*1000*1500mm
Trademark	GELGOOG
Origin	China
HS Code	8479200000
Production Capacity	200 Sets/Month

Product Description

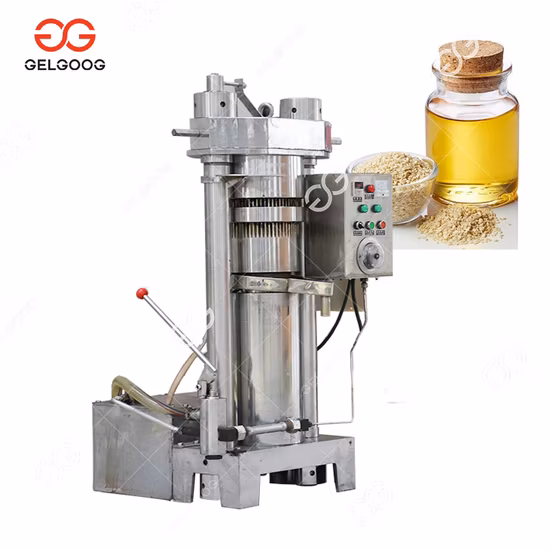

Introduction of Oil Press Machine
The hydraulic oil press machine is used to extract oil from peanut, soybeans, sesame, sunflower seeds,walnut, pine nut, almond etc, and boast high oil yield. With easy operation and various models.
This Cold Oil Press Machine have been exported to many countries, greatly improving working efficiency compared with manual operating.
This hydraulic oil press machine press little materials per time(2-7kg) and the pressing time is short(8-12min) so it's popular in large and medium cities.

Advantage of the Oil Processing Machine
1. oil press machinery is equipped with faster pressing speed, and it can press oil by a short time.
2. Machine isis able to bear high temperature without any cooling device even the oil temperature is above 65C.
3. Lownoise, lightweight, small volume, low power consumption(can save at least 30% power compared with double plunger pump), and energy-saving.
4. Due to the hydraulic device(high pressure), automatic control system and preheating temperature control, sunflower oil pressing machine has high oil yield with high quality.
5. Wide application
Hotpress material: Sesame, flax, peanut, rapeseed, wheat germ, corn germ, etc.,
Cold press material: Walnut kernels, pine nuts, almonds, olives, macadamia nuts, camellia seeds, etc.,
Condiments: Pepper, mustard seed, etc.,

Parameter of Seed Oil Processing Equipment:

Model	GG-ZY180	GG-ZY230	GG-ZY280	GG-ZY320
Pressure	55Mp	55Mpa	60MPa	60MPa
Feeding Diameter	180mm	230mm	280mm	320mm
Capacity(Per time)	1-3 kg	2-7 kg	5-15 kg	10-20 kg
Heating power	1kw	1kw	2kw	3kw
Hydraulic Motor power	1.5kw,380V	1.5kw,380V	2.2kw,380V	6.4kw,380V
Nominal pressure	1600KN	2200KN	3000KN	3500KN
Dimension	800*650*1100	900*750*1400mm	900*1000*1500mm	900*1100*1650
Weight	530kg	880kg	1500kg	2000kg
